The Toshiba RAV-GM1601BTP-A / RAV-GM1601ATP-A is a mid static reverse cycle ducted air conditioning system designed for larger homes, offices, and commercial spaces that require reliable airflow and flexible duct design. Built with Toshiba’s Digital Inverter technology, it delivers efficient, consistent temperature control while maintaining strong performance across multiple rooms and longer duct runs. With 14.0kW cooling and 16.0kW heating capacity, this system is ideal for large open-plan living areas, multi-room homes, offices, and spaces approximately 60–100m² depending on insulation and layout. Its wide operating range allows it to modulate between 3.0kW and 16.0kW in cooling, helping maintain stable comfort while reducing energy consumption.

Key Features & Benefits

Mid Static Pressure Performance

Designed for flexible ducted installations, the system supports external static pressure from 50Pa up to 200Pa, making it suitable for moderate to long duct runs and multiple outlets. This ensures consistent airflow distribution throughout larger properties.

Digital Inverter Technology

Toshiba’s advanced inverter compressor automatically adjusts output to match room conditions, delivering more stable temperatures, improved efficiency, and lower running costs compared to fixed-speed systems.

Strong Airflow Capability

The system delivers airflow up to 652 litres per second on high fan speed, ensuring even air distribution across multiple rooms and open-plan areas.

Single-Phase Power Supply

Operating on standard 220–240V single-phase power, this unit is suitable for most residential homes without requiring a 3-phase upgrade, while still providing high-capacity performance.

Energy Efficient Performance

With an EER of approximately 3.20 and COP of 3.50, the system balances strong output with energy efficiency, helping reduce long-term running costs.

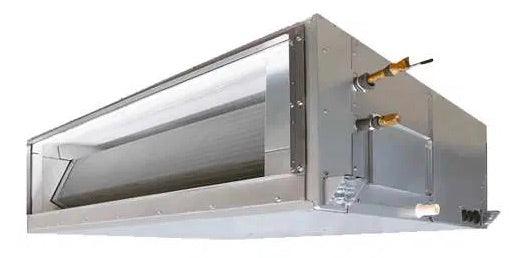

Compact Indoor Unit Design

The indoor unit measures approximately 275mm high, making it suitable for installations where ceiling space is limited. Despite its slim profile, it maintains strong airflow performance for larger homes.

Quiet Operation

Indoor sound levels are approximately 42dBA, helping maintain comfortable noise levels for living areas and offices, while the outdoor unit operates at around 57dBA.

R32 Refrigerant

The system uses modern R32 refrigerant, providing improved efficiency and reduced environmental impact compared to older refrigerants.

Wired Controller Included

The system includes a backlit wired controller (RBC-AMS55E-ES) with weekly timer functionality, allowing easy control of temperature, fan speed, and operating modes.

Ideal Applications

• Large homes
• Open-plan living areas
• Multi-room residential properties
• Offices
• Light commercial spaces
• Zoned ducted systems

Why Choose the Toshiba 14kW Mid Static Ducted System?

The Toshiba RAV-GM1601BTP-A / RAV-GM1601ATP-A is a powerful and efficient ducted solution designed for larger properties that require consistent airflow, flexible duct design, and reliable year-round comfort. With its Digital Inverter technology, strong mid static pressure performance, compact design, and included controller, it’s an excellent choice for homes and businesses needing discreet whole-building climate control.
