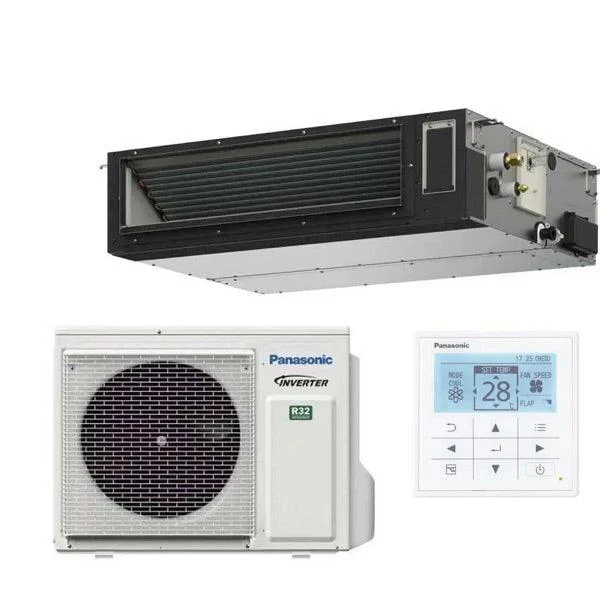

The Panasonic Adaptive Ducted 14kW S-1014PF3E / U-140PZ3R8 is a high static reverse cycle ducted air conditioning system designed for large homes, offices, and commercial spaces that require strong airflow, long duct runs, and installation flexibility. Part of Panasonic’s NX Series, it combines a slimline indoor unit with powerful airflow, smart controls, and advanced air purification technology. It includes the S-1014PF3E indoor unit, U-140PZ3R8 3-phase outdoor unit, and Panasonic wired controller. With 14.0kW cooling and 16.0kW heating capacity, this model is ideal for large open-plan living areas, multi-room homes, offices, and spaces around 60–100m² depending on insulation and layout. It can modulate from approximately 3.3kW to 16.0kW in cooling mode and from 3.3kW to 18.0kW in heating mode for improved comfort and lower running costs.

Key Features & Benefits

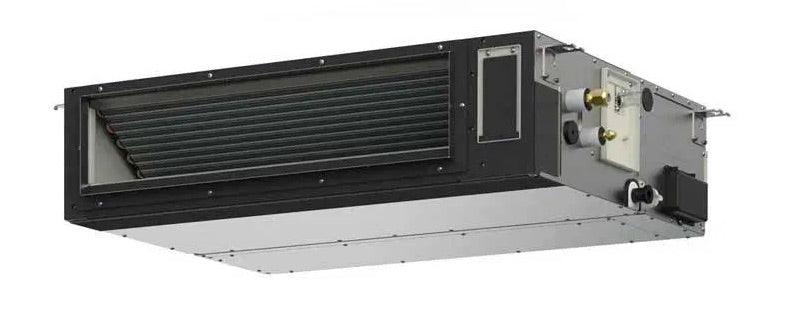

Slimline Indoor Unit Design

One of the standout features of the NX Series Adaptive Ducted range is its slim indoor unit profile. At approximately 250mm high, the indoor unit is designed for tighter ceiling spaces, shallow bulkheads, and restricted roof cavities while still delivering powerful airflow.

High Static Pressure Performance

The system supports external static pressure up to 150Pa, making it suitable for longer duct runs, multiple outlets, and larger zoned homes. Panasonic’s variable external static pressure control allows airflow to be adjusted for different duct layouts and installation conditions.

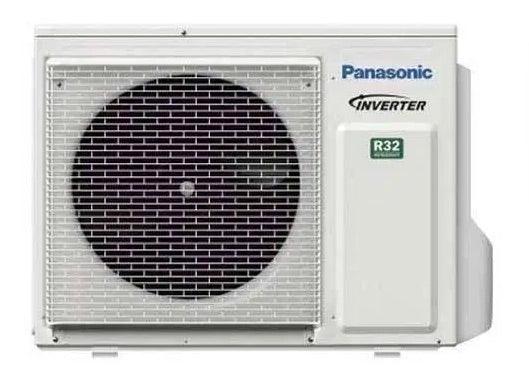

3-Phase Power Supply

This model operates on 380–415V 3-phase power, making it suitable for larger homes and commercial properties with 3-phase electrical supply. The 3-phase configuration helps spread electrical load more evenly and is ideal for larger-capacity ducted systems.

Strong Airflow Performance

The system delivers airflow up to approximately 1002 litres per second on high fan speed, helping provide even air distribution throughout large homes and commercial spaces. Its large airflow capacity makes it well suited to long duct runs and multiple outlet configurations.

nanoe™ X Air Purification

Panasonic’s nanoe™ X technology helps inhibit bacteria, viruses, allergens, pollens, mould, and odours. The purification mode can operate independently from heating or cooling, allowing the system to provide 24-hour air purification throughout the home.

Flexible Vertical or Horizontal Installation

The Adaptive Ducted design allows the indoor unit to be installed horizontally or vertically, making it easier to suit different roof spaces and building layouts. This flexibility is especially useful in homes with limited ceiling space or unusual roof structures.

Energy Efficient Inverter Technology

The inverter compressor automatically adjusts output based on room conditions, helping reduce running costs while maintaining more stable temperatures. Panasonic’s NX Series systems are designed to provide strong energy efficiency across a wide operating range.

Quiet Operation

Despite its large capacity, the indoor unit is designed for low noise operation. Panasonic’s Adaptive Ducted range can operate at sound levels as low as 22dBA in certain modes, helping maintain quieter performance in living areas and bedrooms.

Smart Control Compatibility

The system is compatible with Panasonic Comfort Cloud and CONEX smart control systems, allowing remote access, power monitoring, and advanced scheduling when paired with the required Wi-Fi accessories.

Long Pipe Run Capability

The system supports pipe runs up to 85 metres, with a maximum height difference of up to 30 metres between the indoor and outdoor units. This provides installers with greater flexibility for larger homes and complex layouts.

R32 Refrigerant

The system uses modern R32 refrigerant for improved efficiency and lower environmental impact compared to older refrigerants.

Ideal Applications

• Large homes
• Open-plan living areas
• Offices
• Commercial spaces
• Homes with limited ceiling space
• Zoned ducted systems
• Properties with long duct runs

Why Choose the Panasonic Adaptive Ducted 14kW NX Series?

The Panasonic Adaptive Ducted 14kW S-1014PF3E / U-140PZ3R8 is a powerful and flexible ducted solution designed for larger homes and commercial spaces that require strong airflow, high static pressure, and easier installation in restricted spaces. With its slim 250mm indoor unit, 3-phase power supply, nanoe™ X air purification, flexible installation options, and strong 14.0kW cooling capacity, it is an excellent option for demanding whole-home climate control.
