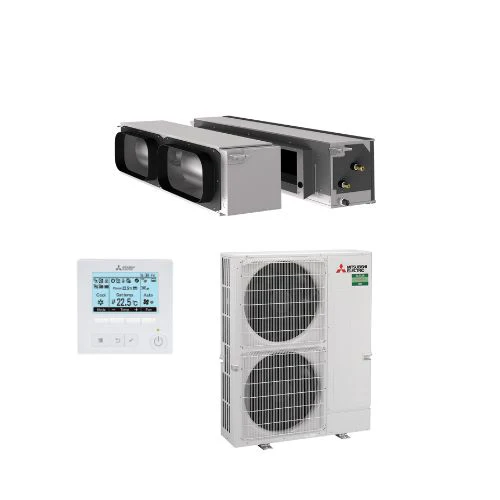

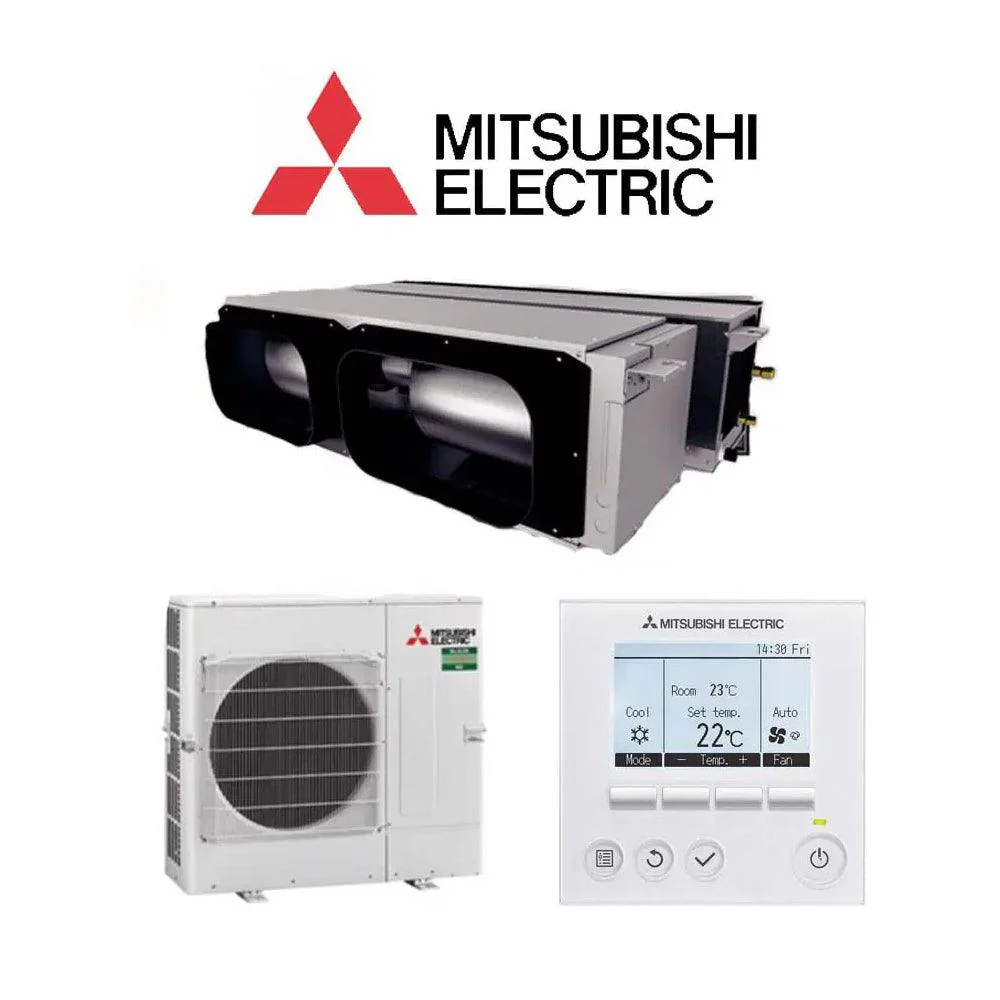

The MITSUBISHI ELECTRIC PEAMS100HAAVKIT is a high static reverse cycle ducted air conditioning system designed for larger homes, offices, and renovation projects where roof access is limited. Featuring Mitsubishi Electric’s two-piece indoor unit construction, this system is easier to transport and install in restricted ceiling spaces while still delivering strong airflow and whole-home comfort. It includes the PEA-M100HAA indoor unit, PUZ-M100VKA-A outdoor unit, and PAR-40MAA backlit wall controller. With 10.0kW cooling and 11.2kW heating capacity, this model is ideal for medium to large homes, open-plan living areas, offices, and spaces around 45–75m² depending on insulation and layout. It can modulate from approximately 4.0kW to 10.6kW in cooling mode and from 2.8kW to 12.5kW in heating mode for more stable temperatures and reduced running costs.

Key Features & Benefits

Two-Piece Indoor Unit Construction

One of the standout features of the PEA-M-HAA series is its two-piece indoor design. The fan section can be separated from the heat exchanger section, making installation much easier in existing homes with narrow roof access, tight ceiling spaces, or limited clearance between roof trusses.

High Static Pressure Performance

The system supports adjustable external static pressure settings of 50Pa, 100Pa, and 150Pa, making it suitable for long duct runs, multiple outlets, and larger zoned homes. Four fan speed settings allow installers to fine-tune airflow for different layouts and comfort requirements.

Single-Phase Power Supply

This model operates on standard 230V single-phase power, making it suitable for most residential homes without requiring a 3-phase electrical upgrade. Rated running current is approximately 13.8 amps with a recommended 32-amp breaker.

Energy Efficient Inverter Technology

The system uses Mitsubishi Electric inverter technology to automatically adjust compressor speed based on room conditions, helping maintain more consistent temperatures and lower running costs. It achieves an AEER of approximately 3.21 and an EER of approximately 3.31.

Strong Airflow Performance

Designed for larger homes and more demanding duct layouts, the system delivers strong and even airflow throughout the home. The high static pressure design ensures consistent comfort across long duct runs and multiple zones.

Quiet Operation

Indoor sound pressure levels range from approximately 29dBA on low speed to 38dBA on high speed, helping maintain quieter day-to-day performance. Outdoor sound pressure is approximately 52dBA.

Flexible Zoning and Wi-Fi Compatibility

Optional zoning allows the system to control up to 4 or 8 zones, helping reduce energy use by only conditioning occupied areas. An optional Wi-Fi adaptor also allows remote control via smartphone, tablet, Alexa, or Google Assistant.

R32 Refrigerant

The system uses modern R32 refrigerant for improved efficiency and lower environmental impact compared to older refrigerants.

Compact Indoor Unit Design

The indoor unit measures approximately 380mm high, 1405mm wide, and 900mm deep, while the outdoor unit measures approximately 981mm high, 1050mm wide, and 330mm deep. Despite its larger capacity, the system remains compact enough for many residential roof spaces.

Long Pipe Run Capability

The system supports maximum pipe runs of up to 55 metres with a maximum height difference of 30 metres between indoor and outdoor units, providing installers with more flexibility for larger homes and complex layouts.

Ideal Applications

• Medium to large homes
• Open-plan living areas
• Existing homes with limited roof access
• Home renovations
• Offices
• Zoned ducted systems
• Homes with long duct runs

Why Choose the MITSUBISHI ELECTRIC PEAMS100HAAVKIT?

The MITSUBISHI ELECTRIC PEAMS100HAAVKIT is a powerful and flexible ducted solution designed for homes that require strong airflow, easy installation, and whole-home comfort. With its two-piece indoor unit construction, inverter technology, optional Wi-Fi and zoning compatibility, and strong 10.0kW cooling capacity, it is an excellent option for larger homes and renovation projects.
