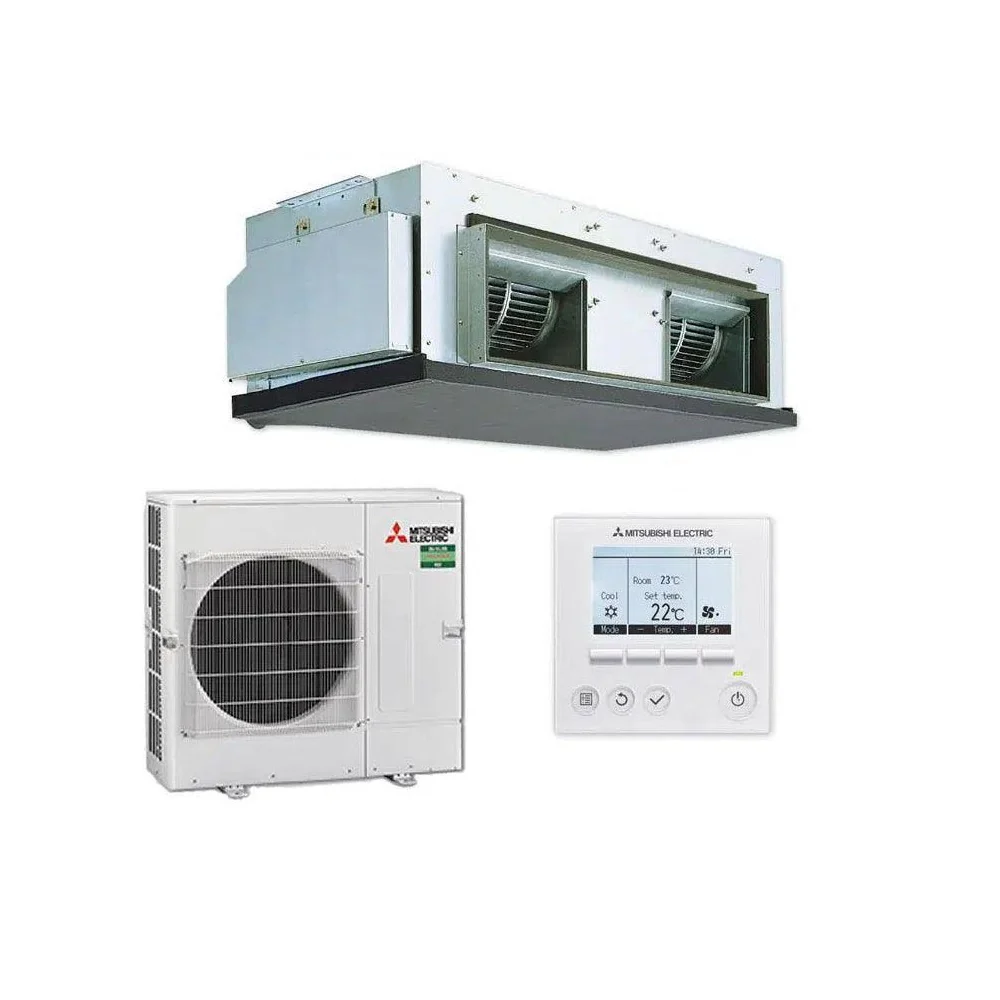

The MITSUBISHI ELECTRIC PEAMS100GAAVKIT is a high static reverse cycle ducted air conditioning system designed for medium to large homes, offices, and open-plan living areas that require strong airflow and flexible duct design. It includes the PEA-M100GAA indoor unit, PUZ-M100VKA outdoor unit, and PAR-40MAA backlit wall controller. Unlike the HAA two-piece series, the GAA range uses a one-piece indoor unit while still delivering powerful whole-home climate control. With 10.0kW cooling and 11.2kW heating capacity, this model is ideal for spaces around 45–75m² depending on insulation and layout. It can modulate from approximately 4.0kW to 10.6kW in cooling mode and from 4.5kW to 11.2kW in heating mode, helping maintain stable temperatures while reducing running costs.

Key Features & Benefits

High Static Pressure Performance

The system is designed for longer duct runs, multiple outlets, and larger zoned homes. It offers flexible external static pressure settings and three fan speeds to help maintain strong airflow throughout the property. Airflow ranges from approximately 567 litres per second up to 700 litres per second depending on fan speed.

Single-Phase Power Supply

This model operates on standard 230V single-phase power, making it suitable for most residential properties without requiring a 3-phase electrical upgrade. Rated running current is approximately 14.5 amps in cooling mode.

Energy Efficient Inverter Technology

The system uses Mitsubishi Electric inverter technology to automatically adjust compressor speed based on room conditions. This helps deliver more stable temperatures, quieter performance, and lower running costs than fixed-speed systems. It delivers an AEER of approximately 3.24 and an EER of approximately 3.12.

Strong Airflow Performance

Designed for whole-home comfort, the unit can maintain consistent airflow across multiple rooms and longer duct layouts. The high static pressure design helps ensure even distribution of conditioned air across larger areas.

Quiet Operation

Indoor sound pressure levels range from approximately 33dBA on low fan speed to 42dBA on high fan speed, helping maintain quieter day-to-day operation. Outdoor sound pressure is approximately 52dBA.

Flexible Zoning and Wi-Fi Compatibility

Optional 4-zone and 8-zone controllers are available, allowing you to independently manage airflow to different parts of the home. An optional Wi-Fi adaptor also allows remote control via smartphone, tablet, Alexa, or Google Assistant.

R32 Refrigerant

The system uses modern R32 refrigerant for improved efficiency and lower environmental impact compared to older refrigerants.

Long Pipe Run Capability

The system supports maximum pipe runs of up to 75 metres, providing installers with more flexibility for larger homes and more complex layouts.

Compact Indoor Unit Design

The concealed indoor unit allows for discreet installation in ceiling cavities or bulkheads, helping maintain a clean look throughout the home while still delivering powerful performance.

Ideal Applications

• Medium to large homes
• Open-plan living areas
• Offices
• Multi-room homes
• Zoned ducted systems
• Homes with long duct runs

Why Choose the MITSUBISHI ELECTRIC PEAMS100GAAVKIT?

The MITSUBISHI ELECTRIC PEAMS100GAAVKIT is a powerful and efficient ducted solution designed for homes that require strong airflow, flexible duct design, and whole-home comfort. With its inverter technology, optional zoning and Wi-Fi compatibility, R32 refrigerant, and strong 10.0kW cooling capacity, it is an excellent option for medium to large homes and offices.
