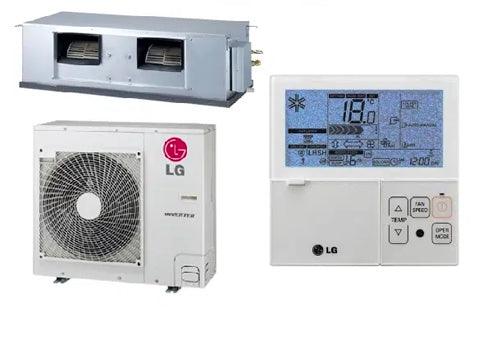

The LG B36AWY-7G6 is a high static reverse cycle ducted air conditioning system designed for larger homes, offices, and commercial spaces that require stronger airflow, long duct runs, and flexible zoning. Its compact indoor unit, high static pressure capability, and optional smart control features make it ideal for open-plan living areas and multi-room properties. It includes LG’s standard PREMTB001 backlit wired wall controller for simple day-to-day operation. With 10.5kW cooling and 13.0kW heating capacity, this model is ideal for large living areas, medium to large homes, offices, and spaces around 50–80m² depending on insulation and layout. It can modulate from 3.2kW to 13.0kW in cooling mode and from 3.4kW to 13.7kW in heating mode, helping maintain more stable temperatures while reducing running costs.

Key Features & Benefits

High Static Pressure Performance

The system supports external static pressure from approximately 98Pa to 196Pa, making it suitable for long duct runs, multiple outlets, and larger zoned ducted systems. Airflow ranges from approximately 148 litres per second up to 721 litres per second, helping maintain strong and even air distribution throughout the property.

Single-Phase Power Supply

This model operates on standard 220–240V single-phase power, making it suitable for most residential homes without requiring a 3-phase electrical upgrade. Rated running current is approximately 12.2 amps in cooling mode and 13.8 amps in heating mode, with a full load current of approximately 29 amps.

Energy Efficient Inverter Technology

The system uses LG inverter technology to automatically adjust compressor speed based on room conditions, helping maintain more consistent temperatures and lower running costs compared to fixed-speed systems. It delivers an AEER of approximately 3.79, an ACOP of approximately 4.1, an EER of approximately 3.82, and a COP of approximately 4.19.

Compact Indoor Unit Design

The indoor unit measures approximately 1320mm wide, 400mm high, and 534mm deep, while the outdoor unit measures approximately 950mm wide, 834mm high, and 330mm deep. Despite its strong airflow performance, the system remains compact enough for many residential roof spaces.

Quiet Operation

Indoor sound levels are approximately 43dBA on high fan speed, 41dBA on medium, and 40dBA on low fan speed. Outdoor sound pressure levels are approximately 53dBA in cooling mode and 54dBA in heating mode, helping maintain quieter day-to-day operation.

Zone Control Compatible

The system supports control of up to eight zones when paired with LG’s premium controller, allowing users to independently manage airflow to different areas of the home. Zone names such as Living Room, Kitchen, and Office can also be assigned for easier control.

Wi-Fi Smart Control Compatible

The LG ThinQ® app allows remote control of the system through a compatible optional Wi-Fi dongle module. This allows users to adjust temperatures, operating modes, and timers even when away from home. Google Assistant compatibility is also available when the optional Wi-Fi module is installed.

Backlit Controller Included

This system includes the LG PREMTB001 backlit wired wall controller, offering easy day-to-day operation with a clear display, weekly timer, sleep mode, child lock, fan speed control, and filter clean reminders. Optional premium touchscreen controllers are also available for advanced zoning and scheduling.

Wide Operating Range

The unit can operate in outdoor temperatures from -15°C to 48°C in cooling mode and from -18°C to 18°C in heating mode, making it suitable for Australian climate conditions year-round.

5 Year Warranty

LG provides a 5-year parts and labour warranty on its ducted air conditioning systems, helping provide long-term peace of mind.

Ideal Applications

• Medium to large homes
• Open-plan living areas
•  Offices
• Multi-room homes
• Homes with long duct runs
• Zoned ducted systems

Why Choose the LG B36AWY-7G6?
